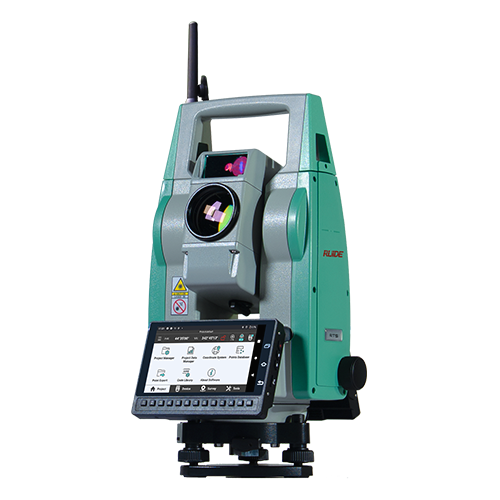

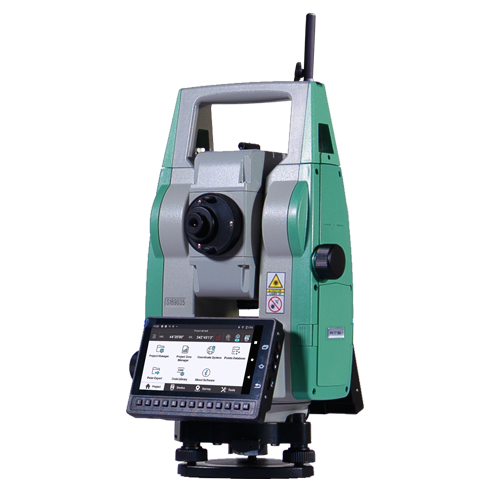

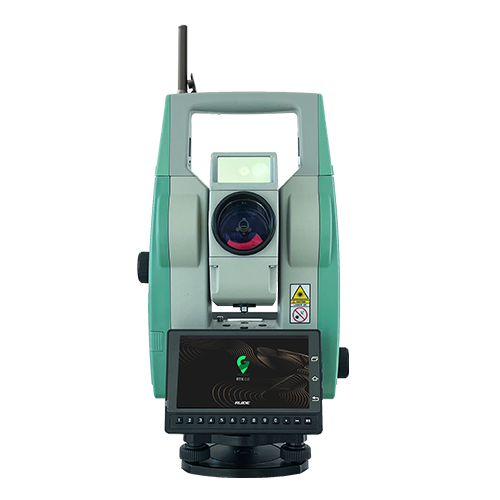

RTS1

Bringing excellent efficiency to your field task!

An all-in-one professional Robotic TS for layout, survey and monitoring.

1200m Prism Recognition,

Accurate and Easy.

RTS1 is able to recognize prism within 1200m line of sight, operators don’t need to frequently

adjust instrument by their hands. It improves the efficiency and make the work easier.

300m Search and Track,

Stable and Smooth.

RTS1 is able to actively search for a prism in 300m, and follow prism’s movement constantly.

The range is Horizontally 360°, Vertically ±18°.

So when the prism-man has moved to a new target point, there is no need to re-aim and

reset from the total station. It ensures the continuity of the measurement work and decrease the down time.

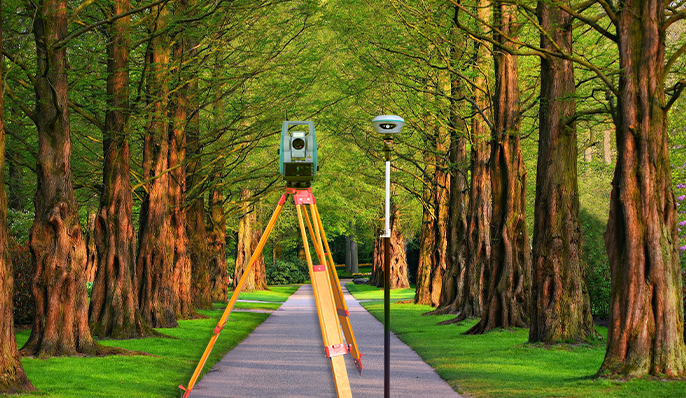

Prism Plus RTK,

Performance Enhanced!

Now RTS1 is allowing surveyors to combine their GNSS RTK into total station measurement,

by installing RTK receiver above the prism.

When the prism is temporarily getting out of the line-of-sight, RTS1 can use RTK positioning

data to find the prism. Once the prism is moving out from the obstacle, total station can

re-sight at it immediately. It saves a lot of time of prism re-searching.

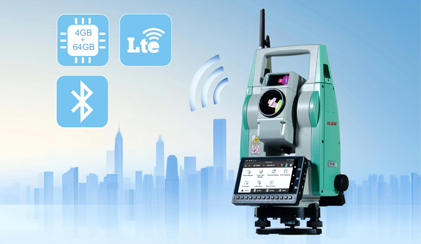

Advanced Hardware,

Superb Experience.

RTS1 features 4 64GB Memory & 4G LTE internet connection, data file storing and sharing

is convenient. The 5.5 inches touch screen and the 13 shortcut keys help users view the data

intuitively and operate quickly. Zigbee Long-range communication module can provide a stable

connection between total station and data logger in maximum 600m range.

The hardware configuration has been proven in different measurement tasks and working scenarios.

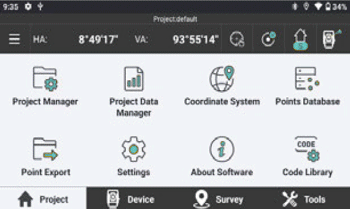

RTK-GO App,

More Capable & Enjoyable.

Previously, RTK-GO App can be used with RUIDE GNSS receiver, manual total station,

now it comes to Robotic Total Stations.

Graphical and iconic guidance helps you collect data and conduct staking out efficiently.

Map-driven workflow provides you intuitive guidance and real-time feedback.

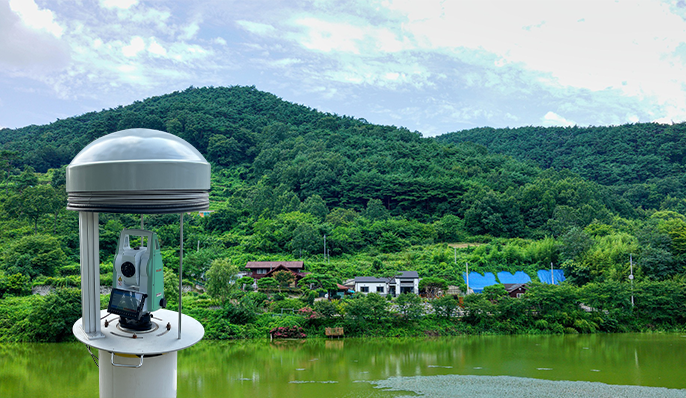

Automated Monitoring,

Reliable and Resultful.

By delivering exceptional angular and distance measurement accuracy, RTS1 enables

precise detection of minor displacement changes at monitoring points. The wireless communication

function on board allows users to perform remote control and data management at anytime.

Automated measuring and data recording also can reduce labor cost and improve accuracy.
